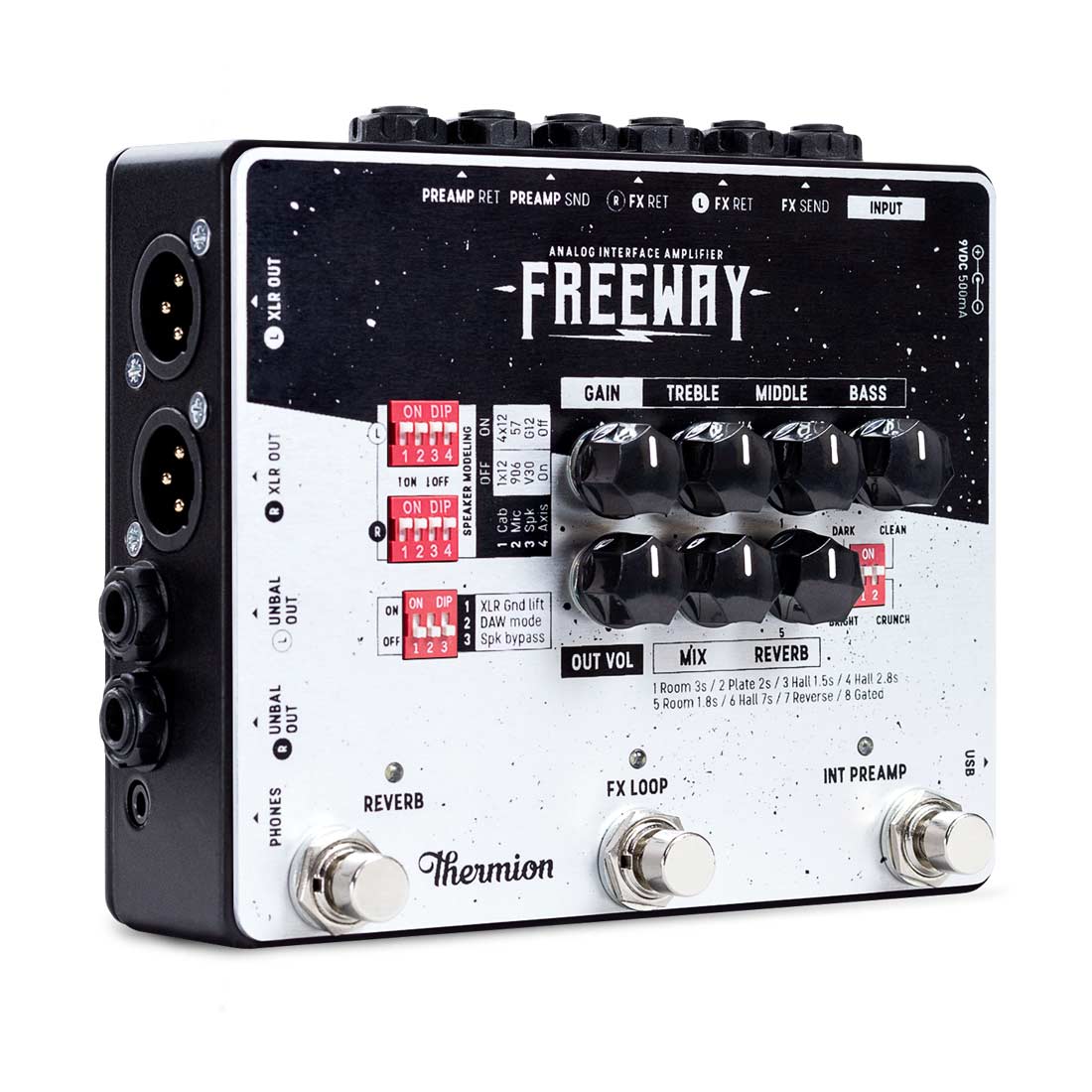

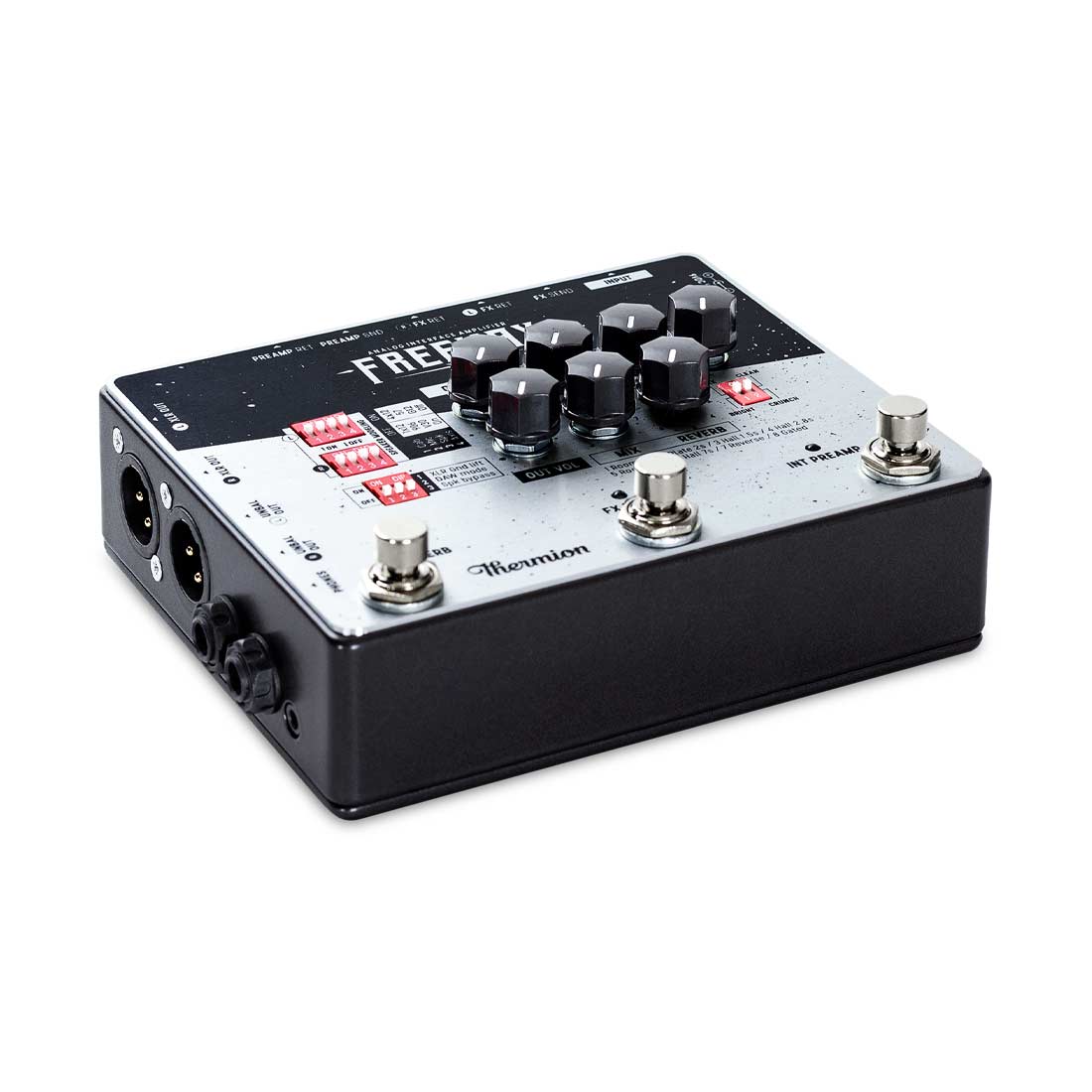

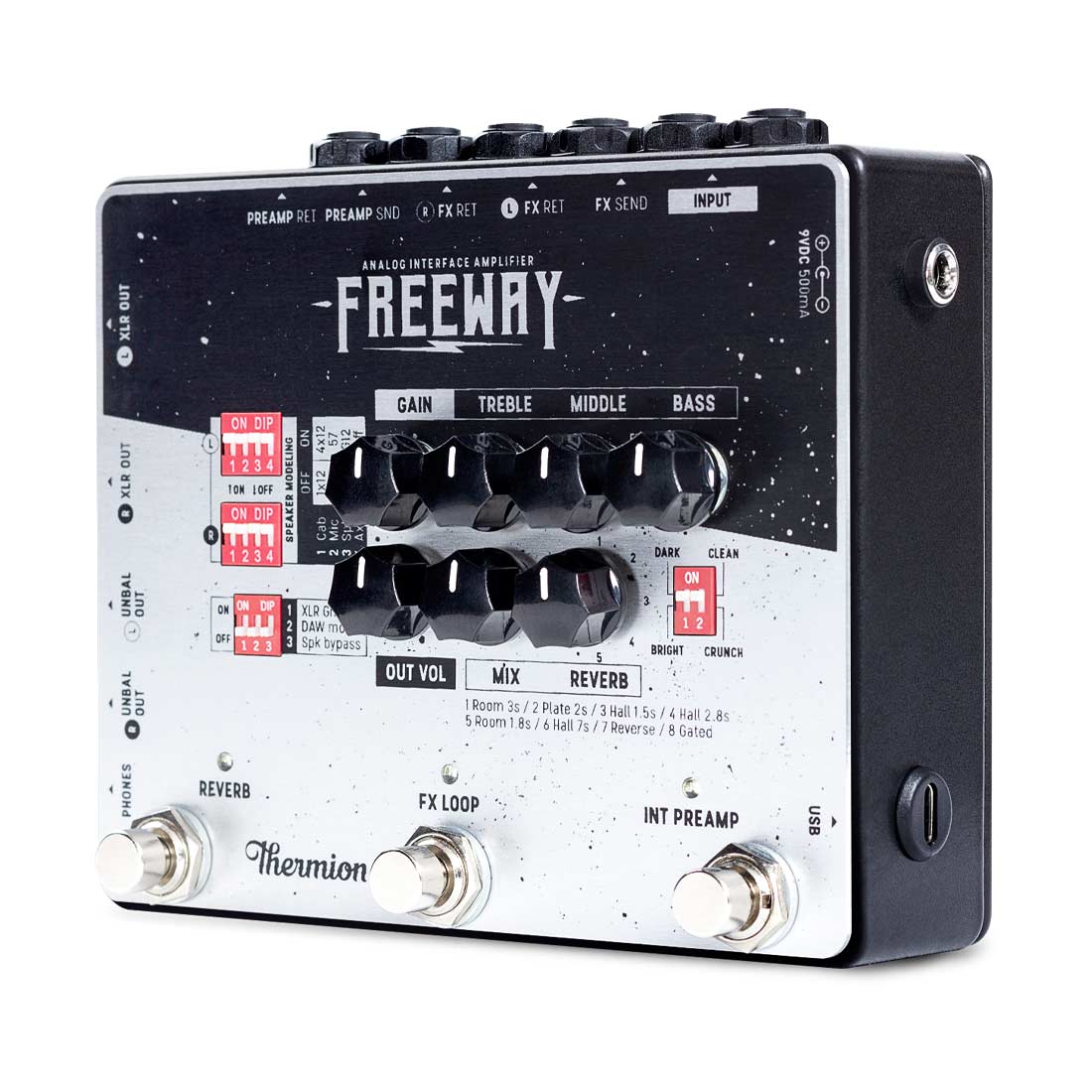

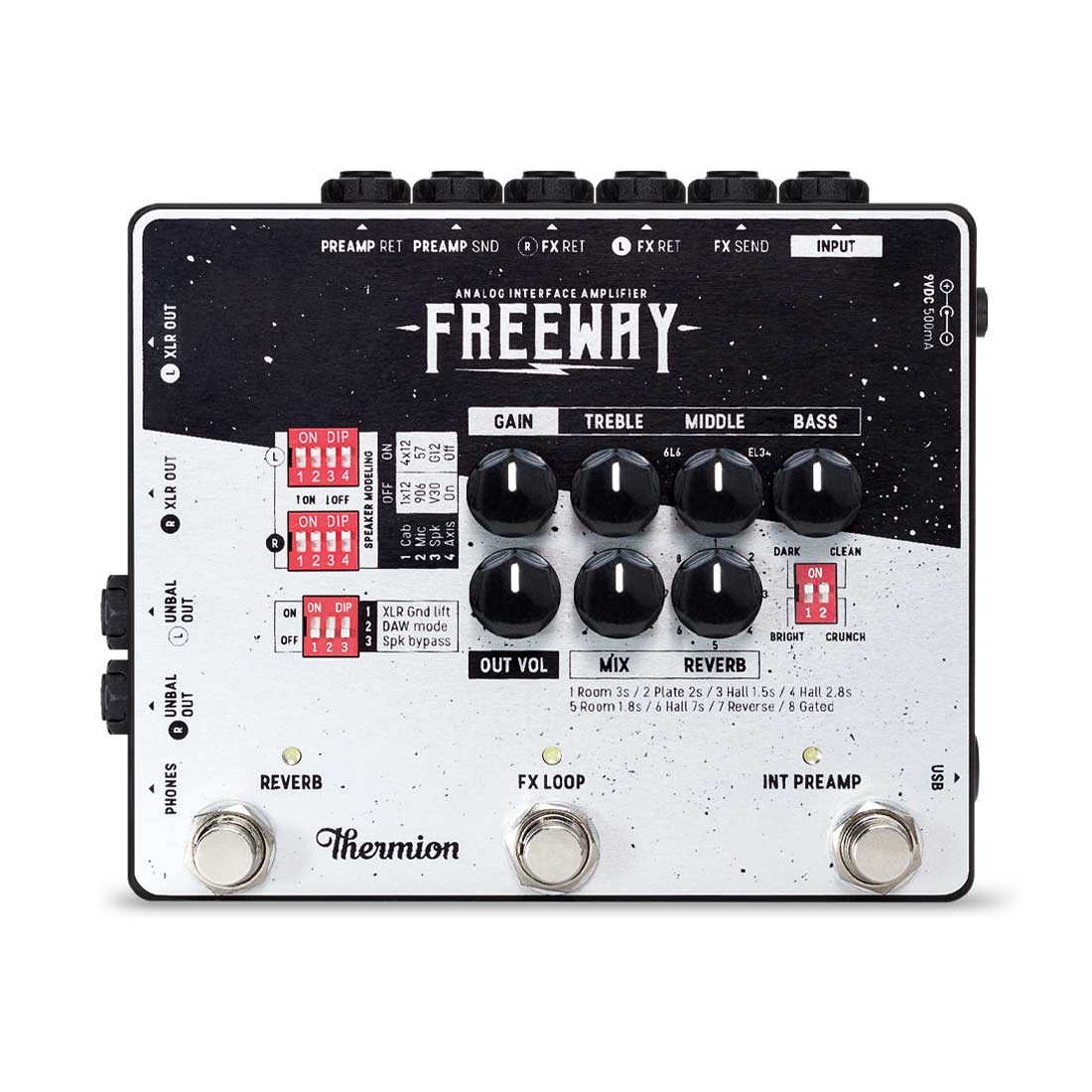

Thermion Freeway Hybrid Amplifier

Freeway is the DI guitar amplifier, speaker modeler and recording interface that lets you play live shows, rehearsals or record your ideas anywhere, always with warm, analog and dynamic tones.

A tool in the size of a pedal, with full stereo capability and open signal path. It is specially designed to integrate all your effects, overdrives, modulations and preamps in a single all-road pedalboard.

Freeway is an amplifier and also studio interface. You can record or play over backing tracks using your computer or phone thanks to its USB compatibility with PC, iOS and Android.

Discover its stereo Analog Speaker Modeling engine, a warm and detailed speaker emulation that you can customize, or pair Freeway with external speaker modellers or guitar power amps, bypassing the speaker emulation.

Create complex atmospheres thanks to its eight stereo reverbs. Use your preamplifiers as a second channel through its preamp loop. Get the most out of your effects thanks to its stereo effects loop.

Features

Analog Interface Amplifier
Pedal format
USB recording interface
Analog Speaker Modelling engine
Full analog internal preamp
Stereo effects loop
Preamp loop: Allows you to replace the internal preamp for an external one
Stereo reverb
9V standard pedal powered

Specifications

Controls

Preamp:
Treble, Mid, Bass, Gain, Clean/Crunch modes, Bright/Dark modes
Reverb:
Reverb mix
Reverb types: Chapel reverb (3 sec.), Plate reverb (2 sec.), Small hall reverb (1.5 sec.), Big hall reverb (2.8 sec.), Room reverb (1.8 sec.), Church reverb (7 sec.), Reverse reverb (1.2 sec.), Gated reverb (0.8 sec.)
Analog Speaker Modelling L&R controls:
Cabinet (1x12" / 4x12"), Speaker (Vintage 30 / Greenback), Microphone (SM57 / E906), Microphone Axis (On / Off)
Out controls:
Output volume,
XLR ground lift, DAW mode Speaker, bypass
Footswtiches:
Reverb On/Off, Effects loop On/Off, Internal preamp On/Off (if switched off, it is replaced with the preamp connected through the preamp loop)

Conexiones

Guitar input
Effects loop send
Effects loop return L (mono)
Effects loop return R
Preamp loop send
Preamp loop return
Balanced XLR output L (mono)
Balanced XLR output R
Unbalanced output L (mono)
Unbalanced output R
Headphone output
USB C

Power

Standard pedal power: 9V ‘negative center’ 2.1mm DC jack
Maximum current consumption: 500mAEstándar de pedal: 9V ‘centro negativo’ a través de Jack DC 2.1mm

Protection

Polarity inversion
AC voltage connection
Momentary Overvoltage

Construction

Hand soldered and built in Spain, Europe, to ensure maximum quality
Aerospace grade aluminum silk-screened printing

Box contents

1x Freeway
1x USBC male to USBC male cable
1x USBC male to USB female adapter
1x Quick start guide

Dimensions and weight

Dimensions (WxHxD): 15,5x12,5x5,7cm

Weight: 625gr
