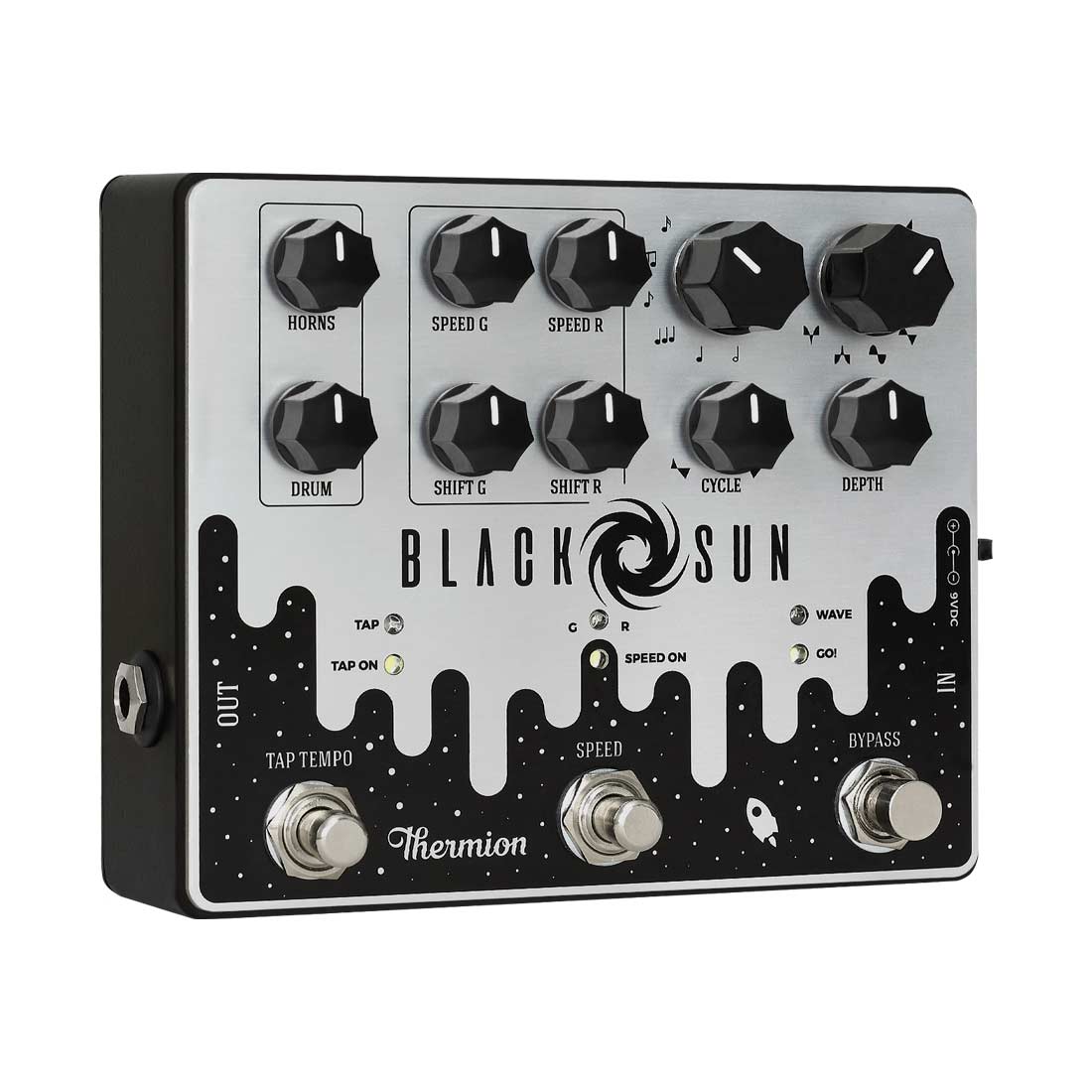

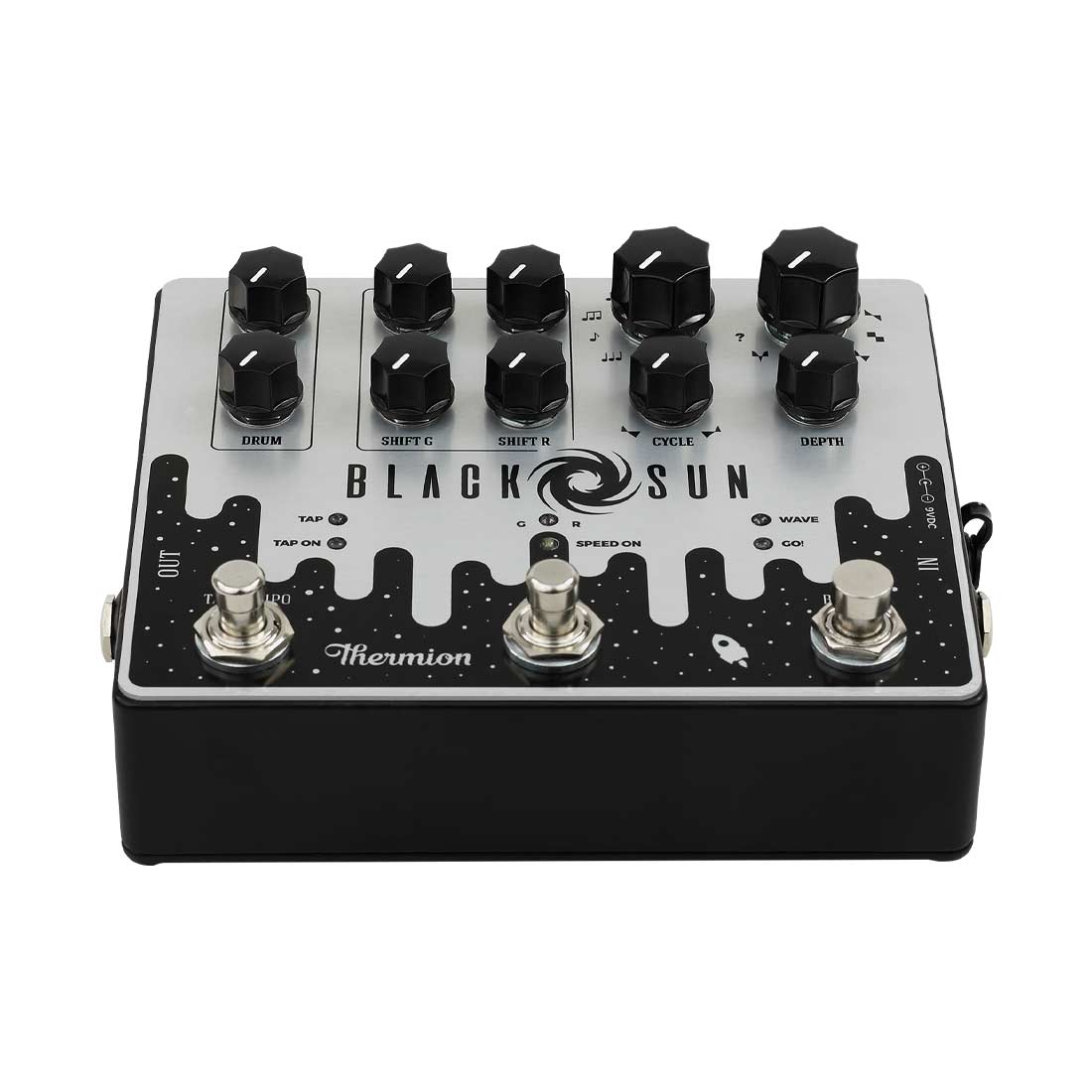

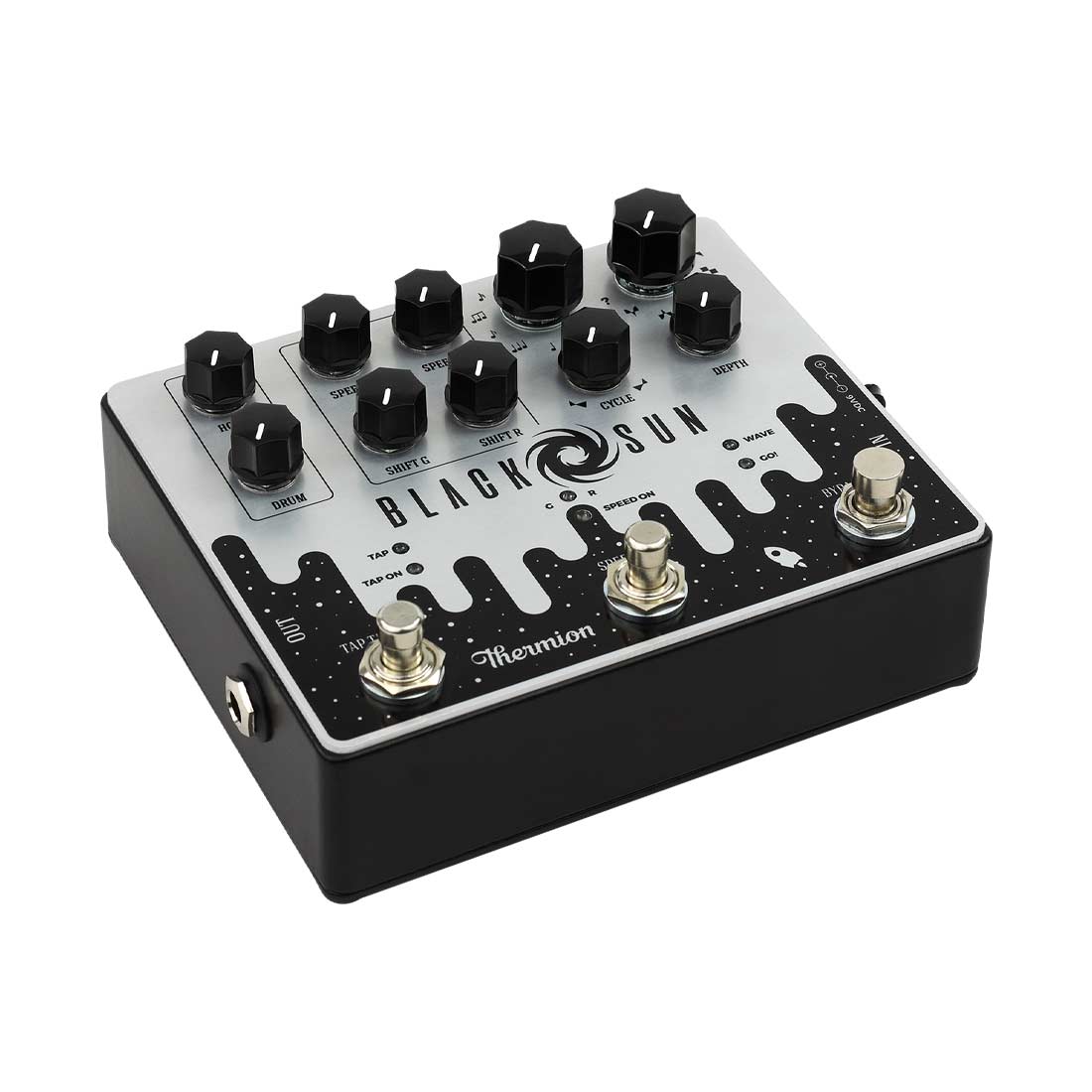

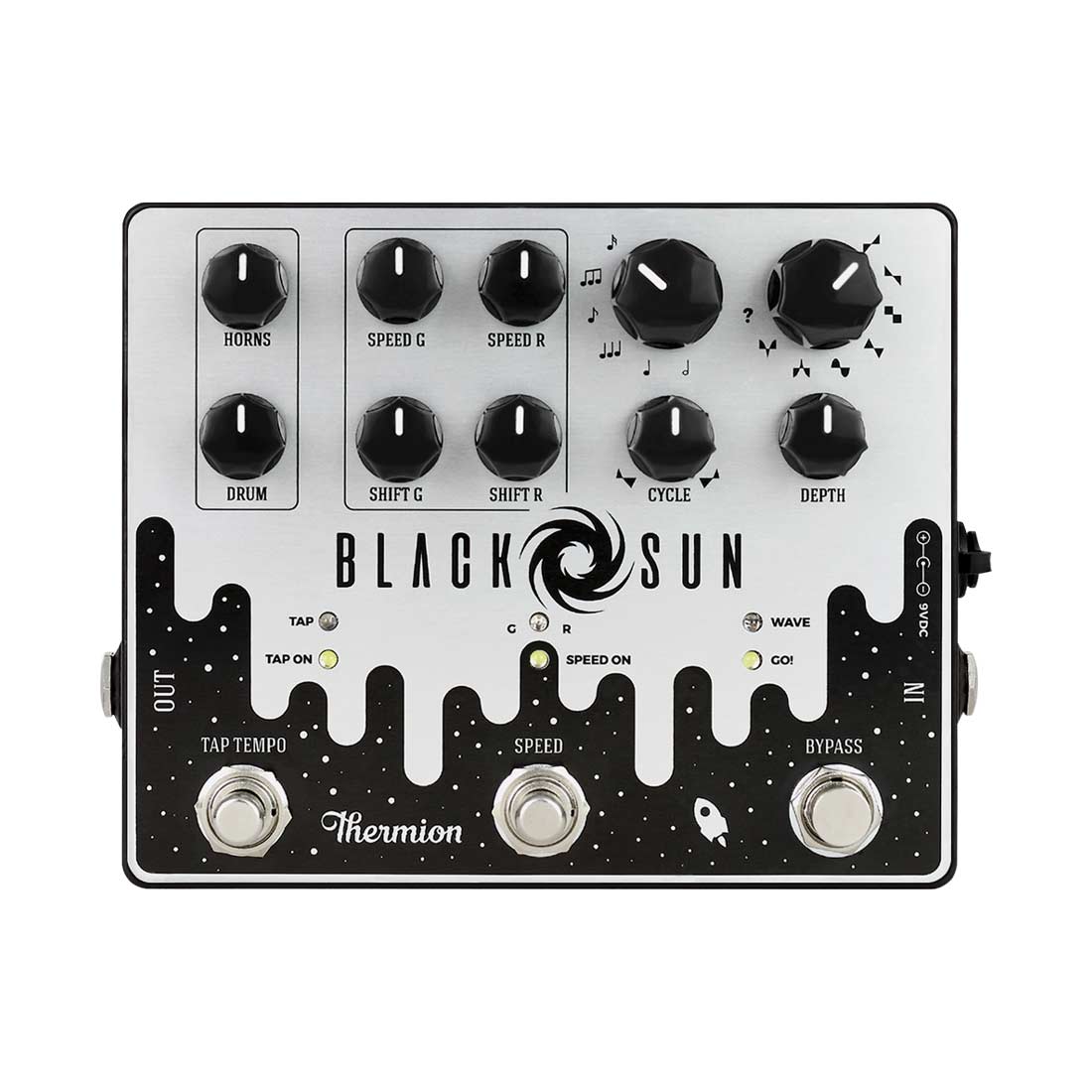

Thermion Black Sun Analog Rotophaser Guitar Pedal

Can you remember the rotophaser sounds of all the artists who influenced your tone? They are all in Black Sun.

Black Sun is the analog rotophaser capable of recreating the most classic rotary speaker sound, the tone of your favorite Seattle scene artists or bringing your tone to the most experimental ground.

Thanks to the total control over its oscillator, its two-band equalizer, the tap tempo function and its two configurable speeds and transitions, Black Sun is the analog rotophaser that will add the most complex atmospheres and textures to your tone palette.

If you want an analog, robust, versatile rotophaser, capable of covering both classic and experimental tones, get a Black Sun.

Features

EQ controls: Drum (Bass), Horns (Treble).
Oscillator controls: Waveform, Cycle (duty cycle), Depth (modulation depth).
Tempo controls: Speed G/R (green and red oscillation speeds), Shift G/R (green and red transition times), Multiplier (figure multiplier for the oscillation rate).
True Bypass.
Tap tempo mode (Tap desired rotation speed) and Speed mode (Shifts between Green and Red oscillation speeds).

Specifications

Controls

Horns, Drum (EQ controls).
Speed G, Shift G (green speed controls).
Speed R, Shift R (red speed controls).
Multiplier, Waveform, Cycle, Depth (oscillator controls).

Power

Standard pedal power: 9V ‘center negative’ 2.1mm DC jack

Protection

Polarity inversion
AC connection
Momentary Overvoltage

Features

True Bypass.
Tap Tempo.
Two speeds with programmable transitions.
Treble and bass controls.
Total control over the oscillator.
Anodized metal printing for maximum durability.
Wired, soldered and built by hand according to our quality standards.

Max current consumption

200mA

Impedances

Input: >1MΩ

Output: <1kΩ

Dimensions and Weight

Dimensions (WxHxD): 15.5x12x5.7cm

Weight: 702 gr
