Eminence

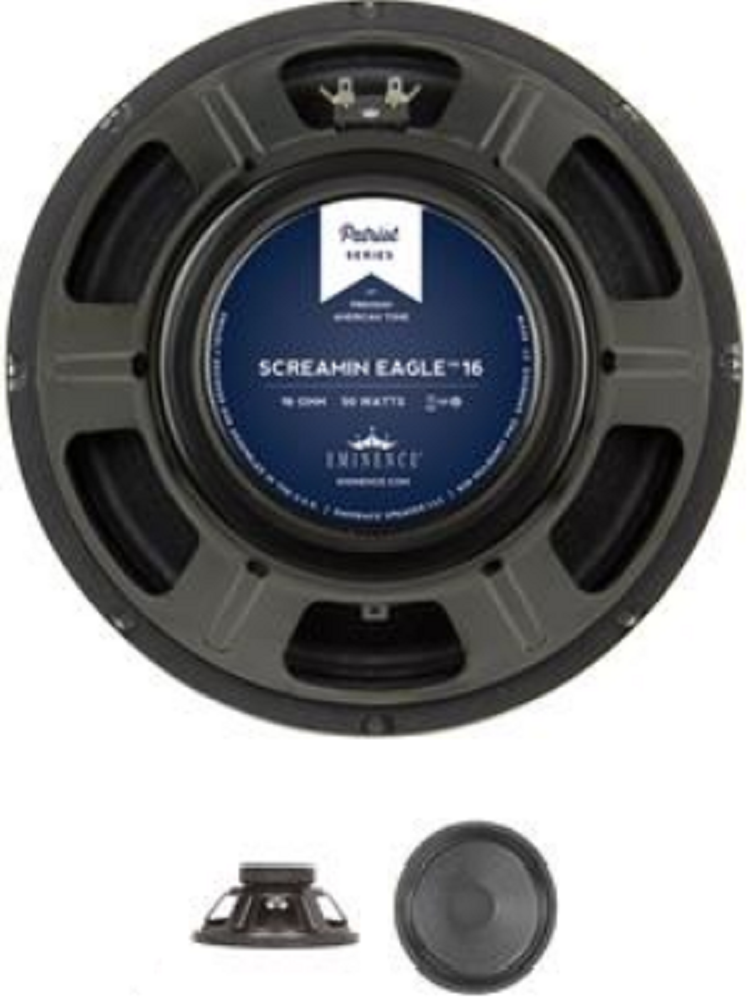

Eminence SCREAMINEAGLE-16 12in Speaker 50w 16 Ohm
Eminence SCREAMINEAGLE-16 12in Speaker 50w 16 Ohm
SKU: SCREAMINEAGLE-16
Stock Status: Medium
Couldn't load pickup availability
Here's a final chance to grab the legendary "Screamin Eagle™"
Good news! We are selling these Screamin Eagle™-16 guitar speakers that an OEM partner canceled due to pandemic financial constraints. Although they were canceled, they are in new condition in unopened boxes. Additionally, all 33 Screamin Eagle™-16s have been tested, repackaged, and are ready for you. Additionally, come with the Eminence 7-year warranty.
The Eminence Screamin Eagle guitar speaker is the way to go for soarin' solos and tight rhythm. Bright and articulate tone with screaming top end and tight bass. Good club speaker for American Blues and Rock.
Characteristics
| Series | Patriot |
| Model | Screamin' Eagle™ |
| Application | 12" Open or Closed Back |
| Configuration | 1, 2, or 4 X 12" |
| Low-End Response | Moderate |
| Low-End Shape | Tight |
| Mid-Range Response | Aggressive |
| Mid-Range Shape | Crisp |
| High-End Response | Aggressive |
| Volume/Power | Loud |
| Overall Coloration* | Bright and articulate tone with screaming top end and tight bass |
| Break-up Modes | Medium |
| Power Range | Up to 50 watts |
| Instrument* | Lead/Rhythm Guitar |
| Genre of Music* | Blues, Rock |
Specifications
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 50 W |
| Resonance | 92 Hz |
| Usable Frequency Range | 80 Hz - 5.5 kHz |
| Sensitivity* | 101.2 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 1.75", 44 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.068 cu.ft. / 1.93 liters |
| Overall Diameter | 12.03", 305.6 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.4mm |
| Depth | 5.10", 129.5 mm |
| Net Weight | 8.3 lbs, 3.76 kg |
| Shipping Weight | 10.2 lbs, 4.63 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Paper former |
| Magnet Composition | Ferrite Magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
Share
Watts: 50w
Voice Coil Size: 1.75" (44mm)
Speaker Size: 12"
Impedance: 16Ω
Recommended Enclosure: Sealed / Closed Back | Vented / Open Back
Cone Composition: ["Paper"]
Speaker Weight: {"value":3.76,"unit":"kg"}
Magnet Type: Ferrite / Ceramic
Impedance: 16Ω
